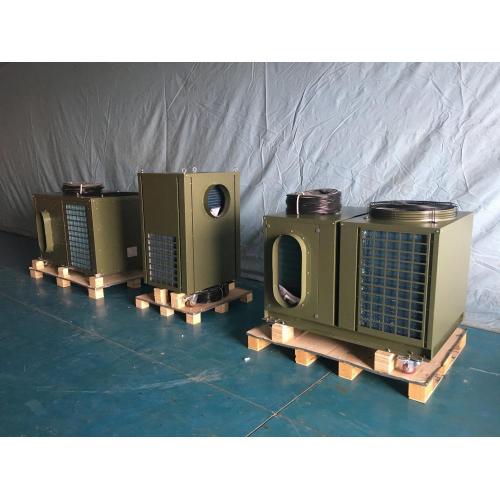

Portable Tent Air Conditioner with Dual Heating &Cooling
$4515
≥1 Piece/Pieces
Share:
- Payment Type: T/T
- Incoterm: FOB,CIF,EXW
- Min. Order: 1 Piece/Pieces
- Transportation: Ocean,Land,Air,Express
- Port: S,h,a
DescriptionProduct AttributesBrand: Canway
Origin: Taizhou
Packaging & DeliverySelling Units: Piece/Pieces Package Type: Packed on Pallets Supply Ability & Additional InformationPackaging: Packed on Pallets
Productivity: 450 pieces
Transportation: Ocean,Land,Air,Express
Place of Origin: Taizhou
Supply Ability: 450 pieces per month
HS Code: 7322900000
Port: S,h,a
Payment Type: T/T
Incoterm: FOB,CIF,EXW
Product DescriptionIt's available for Inflatable Tent, Inflatable Camping Tent, Decontamination Cabin and other shelters.
Features:

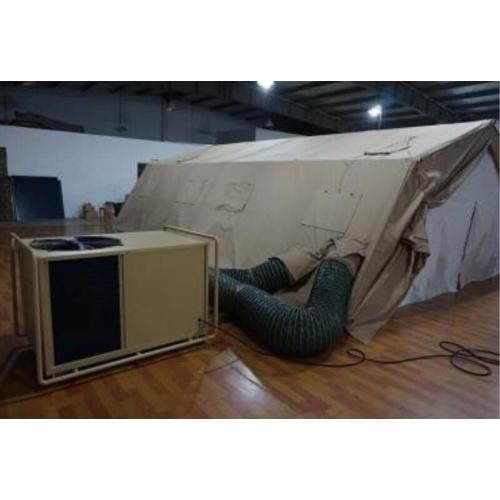

- Easy installing, just connect the flexible duct to the ac and the tent, then connect the power, then tent air conditioner can start to work.
- Quick installing, one person just one minute can finish the install.
- Top finish painting is standard Olive green, also painting according customer needs.
- Can provide cooling at ambient temperature up to+55℃, provide heating at ambient temperature at -10℃.
- Inlet and discharge openings for one Ø 380 mm insulated flexible hose, thus allowing the air conditioning unit itself to be set up outside.
- Easy transportation ,have four wheels in the bottom, can easy move on the ground.
Technical Specifications
Model No.
TTAC-07HCWa
TTAC-12HCWaS
TTAC-18HCWaS
Cooling Capacity
KW/BTU
7KW/3HP
12KW/5HP
18KW/7HP
Heating Capacity
KW/BTU
7KW/3HP
12KW/5HP
18KW/7HP
Applicable Tent Area
㎡
12~18m2
20~30m2
30~45m2
Electric Source
1PH～220V/50Hz
3PH～380V/50Hz
3PH～380V/50Hz
Rated Power Input
W
3250W
6150W
7000W
W
3350W
6250W
8500W
Rated Current Input
A
15.1A
11.0A
11.7A
A
15.5A
11.5A
13.2A
Air Flow Volume
(m3/h）
Indoor Side
1500m3/h
2000m3/h
3000m3/h
Outdoor Side
3500m3/h
5000m3/h
10000m3/h
Air Pressure (Pa)
Indoor Side
200
200
200
Compressor Model No.
GMCCPA330X3CS
PanasonicC－SBN453H8D
Panasonic
C-SBN523H8D
Cooling Temp Range
℃
20℃ to 55℃
20℃ to 55℃
20℃ to 55℃
Heat Pump Temp Range
℃
-10℃ to 20℃
-10℃ to 20℃
-10℃ to 20℃
Electricity Heat Range
℃
-45℃to 20℃
-45℃to 20℃
-45℃ to 20℃
Refrigerant/Charge
KG
R410 A/1.9 kg
R410 A/3.5 kg
R410 A/6.0 kg
Noised B(A)
Indoor Side
≤40 dB(A)
≤45 dB(A)
≤48 dB(A)
Outdoor Side
≤55 dB(A)
≤60 dB(A)
≤65 dB(A)
Gross/Net Weight
kg
165 kg/125 kg
240 kg/180 kg
310 kg/250 kg
Net Dim. (LxWxH)
mm
1040×750×880
1280×920×980
1460×990×1070
Packing Dim(LxWxH)
mm
1090×800×1140
1310×1020×1160
1550×1040×1070
